How to Use Jump Logic

Jump Logic is a tool designed to personalize the experience of quiz participants by guiding them down different paths based on their answers.

Below, we provide a clear, step-by-step guide on how to use Jump Logic, its workings, and examples to illustrate its functionality.

What is Jump Logic?

Jump Logic operates on conditional statements, similar to the IF-THEN-ELSE logic found in programming. It enables the quiz creator to direct participants to different follow-up questions or content based on their responses to previous questions. This is particularly useful in creating quizzes that adapt to the user's input, offering a personalized path through the quiz.

For instance, in a skincare consult quiz, you may start with a question about the participant's skin type (Dry, Normal, Combination, or Oily). Based on the answer, Jump Logic can direct the participant to questions specifically relevant to their skin type, thereby skipping irrelevant questions and tailoring the quiz experience.

Warning

It is advised not to mix Jump Logic and Skip Logic in one quiz. Mixing logic rules can lead to unexpected results.

Conditional Logic

quiz builder conditional logic

In the Conditional Logic tab you can branch your quiz. The left menu allows you to add conditional logic rules to questions in the quiz. The right menu shows a logic tree of the quiz. Any branching you add will be reflected on the tree preview.

By default, the quiz will progress from one question to another based on the question number. Conditional logic allows you to change this default behavior.

How to navigate the Conditional Logic tab?

quiz builder conditional logic preview options

+ - Zoom in on the logic tree preview.

- - Zoom out on the logic tree preview.

[] - Center the logic tree preview and fit into view.

Drag the logic tree with your mouse left button to navigate to specific branches.

quiz builder quiz design switch question

The top menu allows you to switch between questions.

arrow up - Takes you to the question higher.

arrow down - Take you to the question lower.

Warning

Version 2 of the Shop Quiz: Product Recommender app is not yet available. It is currently in the beta testing phase. Learn more here.

quiz builder conditional logic

In the Conditional Logic tab you can branch your quiz. The right menu allows you to add conditional logic rules to questions in the quiz. The left preview shows a logic tree of the quiz. Any branching you add will be reflected on the tree preview.

By default, the quiz will progress from one question to another based on the question number. Conditional logic allows you to change this default behavior.

How to navigate the Conditional Logic tab?

quiz builder conditional logic preview options

+ - Zoom in on the logic tree preview.

- - Zoom out on the logic tree preview.

[] - Center the logic tree preview and fit into view.

🔒 - Toggle interactivity. Lock or unlock the interactivaity of hte preview.

Drag the logic tree with your mouse left button to navigate to specific branches.

quiz builder conditional logic

In the Conditional Logic tab you can branch your quiz. The left menu allows you to add conditional logic rules to questions in the quiz. The right menu shows a logic tree of the quiz. Any branching you add will be reflected on the tree preview.

By default, the quiz will progress from one question to another based on the question number. Conditional logic allows you to change this default behavior.

How to navigate the Conditional Logic tab?

quiz builder conditional logic preview options

+ - Zoom in on the logic tree preview.

- - Zoom out on the logic tree preview.

[] - Center the logic tree preview and fit into view.

Drag the logic tree with your mouse left button to navigate to specific branches.

quiz builder quiz design switch question

The top menu allows you to switch between questions.

arrow up - Takes you to the question higher.

arrow down - Take you to the question lower.

quiz builder conditional logic

In the Conditional Logic tab you can branch your quiz. The left menu allows you to add conditional logic rules to questions in the quiz. The right menu shows a logic tree of the quiz. Any branching you add will be reflected on the tree preview.

By default, the quiz will progress from one question to another based on the question number. Conditional logic allows you to change this default behavior.

How to navigate the Conditional Logic tab?

quiz builder conditional logic preview options

+ - Zoom in on the logic tree preview.

- - Zoom out on the logic tree preview.

[] - Center the logic tree preview and fit into view.

Drag the logic tree with your mouse left button to navigate to specific branches.

quiz builder quiz design switch question

The top menu allows you to switch between questions.

arrow up - Takes you to the question higher.

arrow down - Take you to the question lower.

quiz builder conditional logic

In the Conditional Logic tab you can branch your quiz. The left menu allows you to add conditional logic rules to questions in the quiz. The right menu shows a logic tree of the quiz. Any branching you add will be reflected on the tree preview.

By default, the quiz will progress from one question to another based on the question number. Conditional logic allows you to change this default behavior.

How to navigate the Conditional Logic tab?

quiz builder conditional logic preview options

+ - Zoom in on the logic tree preview.

- - Zoom out on the logic tree preview.

[] - Center the logic tree preview and fit into view.

Drag the logic tree with your mouse left button to navigate to specific branches.

quiz builder quiz design switch question

The top menu allows you to switch between questions.

arrow up - Takes you to the question higher.

arrow down - Take you to the question lower.

quiz builder conditional logic

In the Conditional Logic tab you can branch your quiz. The left menu allows you to add conditional logic rules to questions in the quiz. The right menu shows a logic tree of the quiz. Any branching you add will be reflected on the tree preview.

By default, the quiz will progress from one question to another based on the question number. Conditional logic allows you to change this default behavior.

How to navigate the Conditional Logic tab?

quiz builder conditional logic preview options

+ - Zoom in on the logic tree preview.

- - Zoom out on the logic tree preview.

[] - Center the logic tree preview and fit into view.

Drag the logic tree with your mouse left button to navigate to specific branches.

quiz builder quiz design switch question

The top menu allows you to switch between questions.

arrow up - Takes you to the question higher.

arrow down - Take you to the question lower.

Add Jump Logic to Questions

Jump Logic allows you to route customers to different questions based on their responses.

Info

All the Jump Logic rules follow the same format:

  • IF response to pick the question from a dropdown list
  • is/ is not pick a choice from the dropdown list
  • THEN go to: pick a slide from the dropdown list or add a URL
  1. Open the Quiz Builder.
  2. Open Jump Logic: Navigate to the Conditional Logic tab and select Jump Logic section.
    • IF the response to question X
    • IS EQUAL TO choice Y
    • THEN go to question Z

    Add Jump Logic: Click Add Jump Logic to add a new Jump Logic rule for the selected question. Here, you'll define your conditional statement using the template:

    Example

    quiz builder conditional logic jump logic rule

    In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?".

  3. Multiple Conditions: You can add more than one Jump Logic rule to a single question by clicking on the big + button in the bottom right corner. This allows for complex paths that can direct participants to various follow-up questions based on their specific answers.

    • + - Add another Jump Logic rule. Adds a new OR logical rule.

      Example

      quiz builder conditional logic jump logic OR rule

      In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?" but if the user chooses a choice "A gift" in Question 1 "Who are you shopping for?" then they will be redirected to Question 4 "What is their skin type?".

    • bin - Delete the current Jump Logic rule.

    • + add concurrent logic - Adds a new AND logical statement to the same rule. AND conditional statements can be tricky, as both statements have to be true for the rule to take effect. For most quizzes, using the OR rule is enough.

      Example

      quiz builder conditional logic jump logic AND rule

      In the example, only if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" and a choice "Dry" in Question 2 "What is your skin type?" they will be redirected to Question 3 "What's your age?".

    • Always jump to: - Select a slide or URL where the user will be always redirected after this slide.

  4. Preview and Adjust: Publish the changes with the top-right Publish button to update the preview/live quiz and test the setup.

Warning

Version 2 of the Shop Quiz: Product Recommender app is not yet available. It is currently in the beta testing phase. Learn more here.

  1. Open the Quiz Builder.
  2. Open Jump Logic: Navigate to the Conditional Logic tab and select Jump Logic section.
    • IF the response to question X
    • IS EQUAL TO choice Y
    • THEN go to question Z

    Add Jump Logic: Click + Add another rule to add a new Jump Logic rule for the selected question. Here, you'll define your conditional statement using the template:

    Example

    quiz builder conditional logic jump logic rule

    In the example, if a user chooses a choice "Oily all over" in Question 4 "SKIN TYPE" then they will be redirected to Question 8 "SKIN TYPE: OILY".

  3. Multiple Conditions: You can add more than one Jump Logic rule to a single question by clicking on the big + Add another rule (OR) button in the bottom right corner. This allows for complex paths that can direct participants to various follow-up questions based on their specific answers.

    • + Add another rule (OR) - Add another Jump Logic rule. Adds a new OR logical rule.

      Example

      quiz builder conditional logic jump logic OR rule

      In the example, if a user chooses a choice "Oily all over" in Question 4 "SKIN TYPE" then they will be redirected to Question 8 "SKIN TYPE: OILY" but if the user chooses a choice "Oily in certain spots" in Question 4 "SKIN TYPE" then they will be redirected to Question 6 "SKIN TYPE: COMBINATION".

    • bin - Delete the current Jump Logic rule.

    • + Add concurrent logic (AND) - Adds a new AND logical statement to the same rule. AND conditional statements can be tricky, as both statements have to be true for the rule to take effect. For most quizzes, using the OR rule is enough.

      Example

      quiz builder conditional logic jump logic AND rule

      In the example, only if a user chooses a choice "Oily all over" in Question 4 "SKIN TYPE" and a choice "Teens and 20's" in Question 3 "AGE GROUP" they will be redirected to Question 8 "SKIN TYPE: OILY".

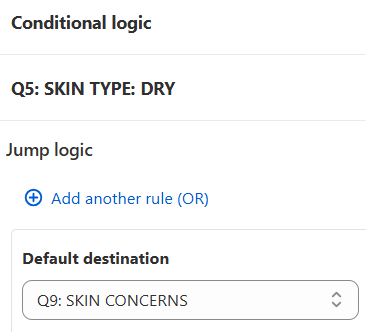

    • Default destination - Select a slide or URL where the user will be always redirected after this slide.

      manual_shopifyV2_quizbuilder_quizbuilder_conditionallogic_jumplogic_defaultdestination

  4. Preview and Adjust: Publish the changes with the top-right Save button to update the preview/live quiz and test the setup.

  1. Open the Quiz Builder.
  2. Open Jump Logic: Navigate to the Conditional Logic tab and select Jump Logic section.
    • IF the response to question X
    • IS EQUAL TO choice Y
    • THEN go to question Z

    Add Jump Logic: Click Add Jump Logic to add a new Jump Logic rule for the selected question. Here, you'll define your conditional statement using the template:

    Example

    quiz builder conditional logic jump logic rule

    In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?".

  3. Multiple Conditions: You can add more than one Jump Logic rule to a single question by clicking on the big + button in the bottom right corner. This allows for complex paths that can direct participants to various follow-up questions based on their specific answers.

    • + - Add another Jump Logic rule. Adds a new OR logical rule.

      Example

      quiz builder conditional logic jump logic OR rule

      In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?" but if the user chooses a choice "A gift" in Question 1 "Who are you shopping for?" then they will be redirected to Question 4 "What is their skin type?".

    • bin - Delete the current Jump Logic rule.

    • + add concurrent logic - Adds a new AND logical statement to the same rule. AND conditional statements can be tricky, as both statements have to be true for the rule to take effect. For most quizzes, using the OR rule is enough.

      Example

      quiz builder conditional logic jump logic AND rule

      In the example, only if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" and a choice "Dry" in Question 2 "What is your skin type?" they will be redirected to Question 3 "What's your age?".

    • Always jump to: - Select a slide or URL where the user will be always redirected after this slide.

  4. Preview and Adjust: Publish the changes with the top-right Publish button to update the preview/live quiz and test the setup.

  1. Open the Quiz Builder.
  2. Open Jump Logic: Navigate to the Conditional Logic tab and select Jump Logic section.
    • IF the response to question X
    • IS EQUAL TO choice Y
    • THEN go to question Z

    Add Jump Logic: Click Add Jump Logic to add a new Jump Logic rule for the selected question. Here, you'll define your conditional statement using the template:

    Example

    quiz builder conditional logic jump logic rule

    In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?".

  3. Multiple Conditions: You can add more than one Jump Logic rule to a single question by clicking on the big + button in the bottom right corner. This allows for complex paths that can direct participants to various follow-up questions based on their specific answers.

    • + - Add another Jump Logic rule. Adds a new OR logical rule.

      Example

      quiz builder conditional logic jump logic OR rule

      In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?" but if the user chooses a choice "A gift" in Question 1 "Who are you shopping for?" then they will be redirected to Question 4 "What is their skin type?".

    • bin - Delete the current Jump Logic rule.

    • + add concurrent logic - Adds a new AND logical statement to the same rule. AND conditional statements can be tricky, as both statements have to be true for the rule to take effect. For most quizzes, using the OR rule is enough.

      Example

      quiz builder conditional logic jump logic AND rule

      In the example, only if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" and a choice "Dry" in Question 2 "What is your skin type?" they will be redirected to Question 3 "What's your age?".

    • Always jump to: - Select a slide or URL where the user will be always redirected after this slide.

  4. Preview and Adjust: Publish the changes with the top-right Publish button to update the preview/live quiz and test the setup.

  1. Open the Quiz Builder.
  2. Open Jump Logic: Navigate to the Conditional Logic tab and select Jump Logic section.
    • IF the response to question X
    • IS EQUAL TO choice Y
    • THEN go to question Z

    Add Jump Logic: Click Add Jump Logic to add a new Jump Logic rule for the selected question. Here, you'll define your conditional statement using the template:

    Example

    quiz builder conditional logic jump logic rule

    In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?".

  3. Multiple Conditions: You can add more than one Jump Logic rule to a single question by clicking on the big + button in the bottom right corner. This allows for complex paths that can direct participants to various follow-up questions based on their specific answers.

    • + - Add another Jump Logic rule. Adds a new OR logical rule.

      Example

      quiz builder conditional logic jump logic OR rule

      In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?" but if the user chooses a choice "A gift" in Question 1 "Who are you shopping for?" then they will be redirected to Question 4 "What is their skin type?".

    • bin - Delete the current Jump Logic rule.

    • + add concurrent logic - Adds a new AND logical statement to the same rule. AND conditional statements can be tricky, as both statements have to be true for the rule to take effect. For most quizzes, using the OR rule is enough.

      Example

      quiz builder conditional logic jump logic AND rule

      In the example, only if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" and a choice "Dry" in Question 2 "What is your skin type?" they will be redirected to Question 3 "What's your age?".

    • Always jump to: - Select a slide or URL where the user will be always redirected after this slide.

  4. Preview and Adjust: Publish the changes with the top-right Publish button to update the preview/live quiz and test the setup.

  1. Open the Quiz Builder.
  2. Open Jump Logic: Navigate to the Conditional Logic tab and select Jump Logic section.
    • IF the response to question X
    • IS EQUAL TO choice Y
    • THEN go to question Z

    Add Jump Logic: Click Add Jump Logic to add a new Jump Logic rule for the selected question. Here, you'll define your conditional statement using the template:

    Example

    quiz builder conditional logic jump logic rule

    In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?".

  3. Multiple Conditions: You can add more than one Jump Logic rule to a single question by clicking on the big + button in the bottom right corner. This allows for complex paths that can direct participants to various follow-up questions based on their specific answers.

    • + - Add another Jump Logic rule. Adds a new OR logical rule.

      Example

      quiz builder conditional logic jump logic OR rule

      In the example, if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" then they will be redirected to Question 2 "What is your skin type?" but if the user chooses a choice "A gift" in Question 1 "Who are you shopping for?" then they will be redirected to Question 4 "What is their skin type?".

    • bin - Delete the current Jump Logic rule.

    • + add concurrent logic - Adds a new AND logical statement to the same rule. AND conditional statements can be tricky, as both statements have to be true for the rule to take effect. For most quizzes, using the OR rule is enough.

      Example

      quiz builder conditional logic jump logic AND rule

      In the example, only if a user chooses a choice "Myself" in Question 1 "Who are you shopping for?" and a choice "Dry" in Question 2 "What is your skin type?" they will be redirected to Question 3 "What's your age?".

    • Always jump to: - Select a slide or URL where the user will be always redirected after this slide.

  4. Preview and Adjust: Publish the changes with the top-right Publish button to update the preview/live quiz and test the setup.

Examples and Applications

Quiz Flow Customization

Imagine creating a quiz that determines a personalized skincare routine. Question 4 might ask about the participant's skin type, and depending on the answer, a different statement or recommendation about their skincare is shown. This individualized response is made possible by Jump Logic, which then continues the quiz based on the participant's specific path.

how to use jump logic

To learn how to build such a quiz check this step-by-step guide.

Jump Logic vs. Skip Logic

While Jump Logic and Skip Logic may seem similar, they serve distinct purposes. Jump Logic creates separate, divergent paths for participants based on their answers, effectively jumping to different questions or content. Skip Logic, on the other hand, determines if a question should be presented or skipped, maintaining a single path but customizing the questions seen by the participant.

It's not recommended to use both Jump Logic and Skip Logic on one quiz.

Additional Resources

Understanding conditional logic, the foundation of Jump Logic, can be challenging. Resources such as WolframAlpha and Khan Academy offer tutorials on AND/OR logic, which can enhance your ability to create effective and complex quiz flows.


Jump Logic is a versatile tool that enriches quizzes by introducing customized paths based on participant responses. By setting up conditional statements, quiz creators can design interactive and personalized experiences, ensuring that each participant's journey through the quiz is relevant to their inputs.
